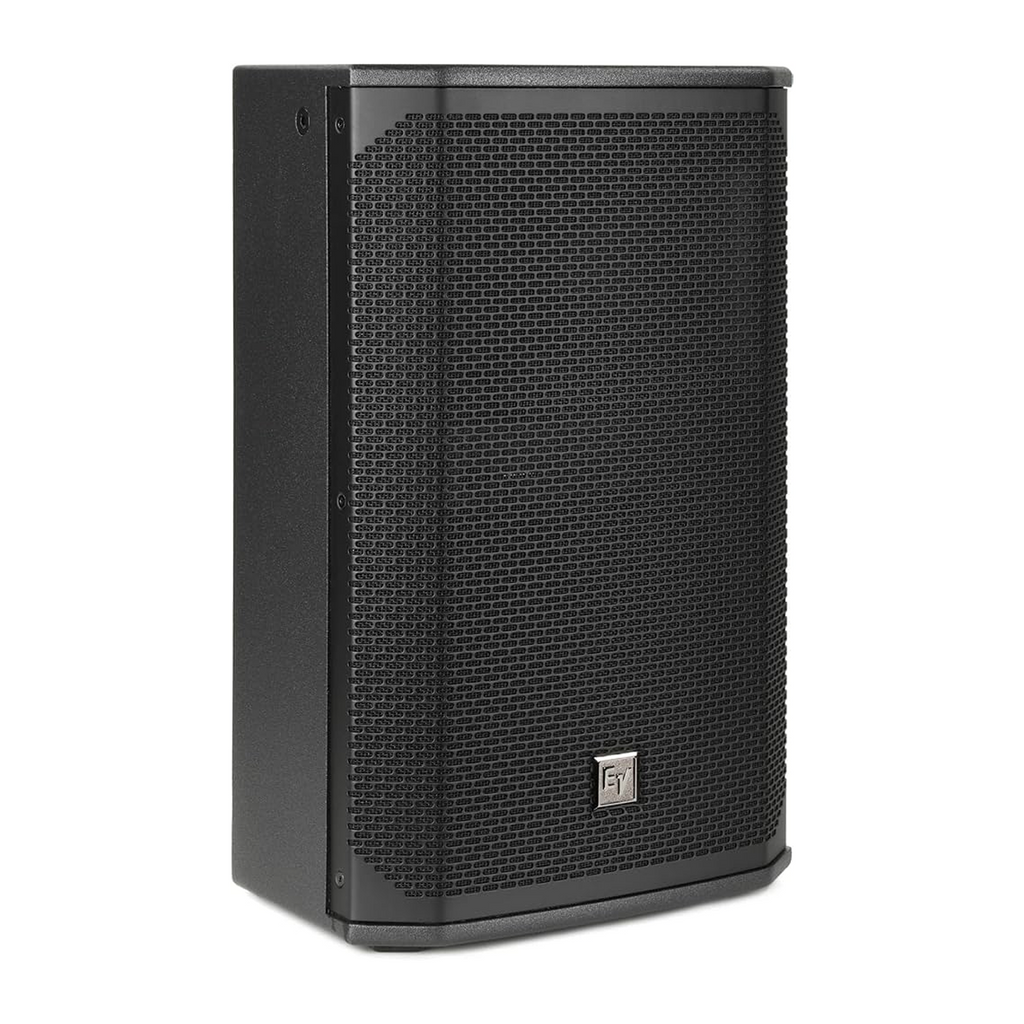

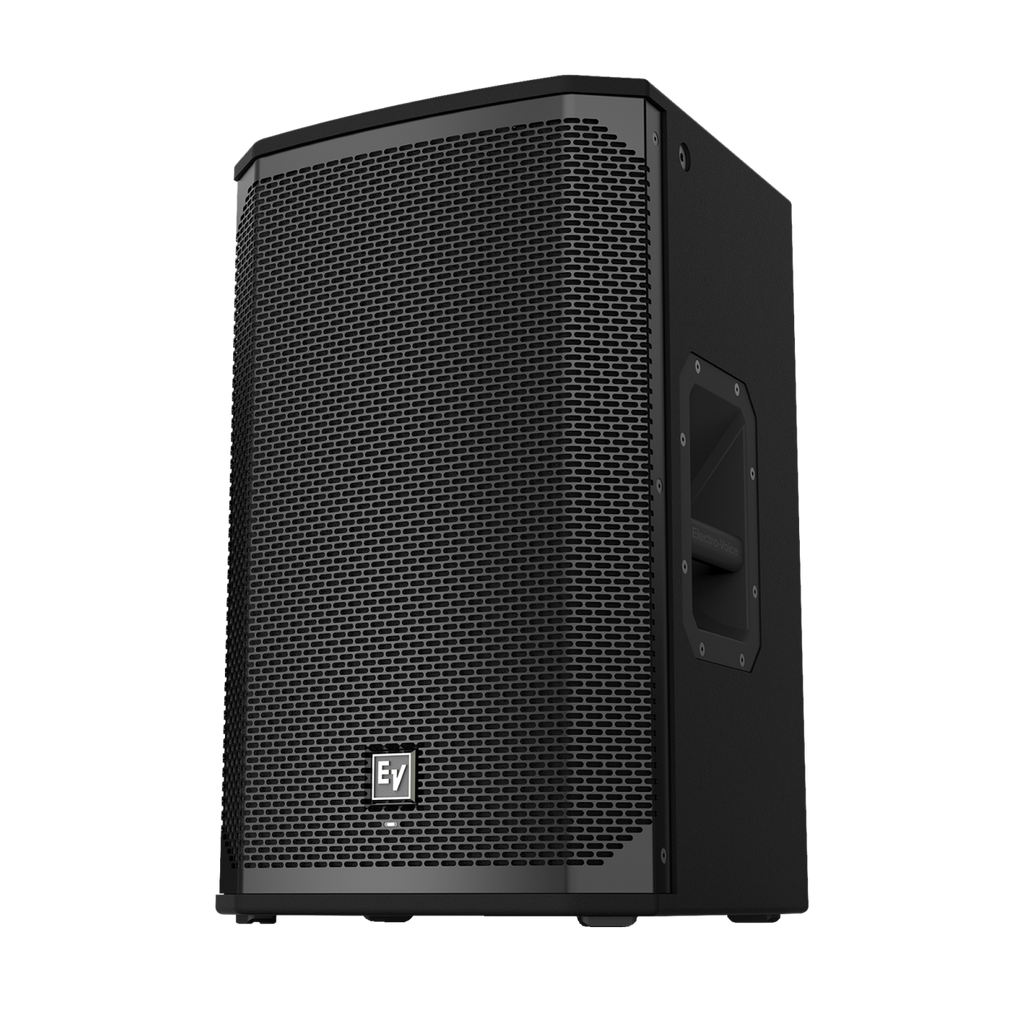

Electro voice 112 ekx

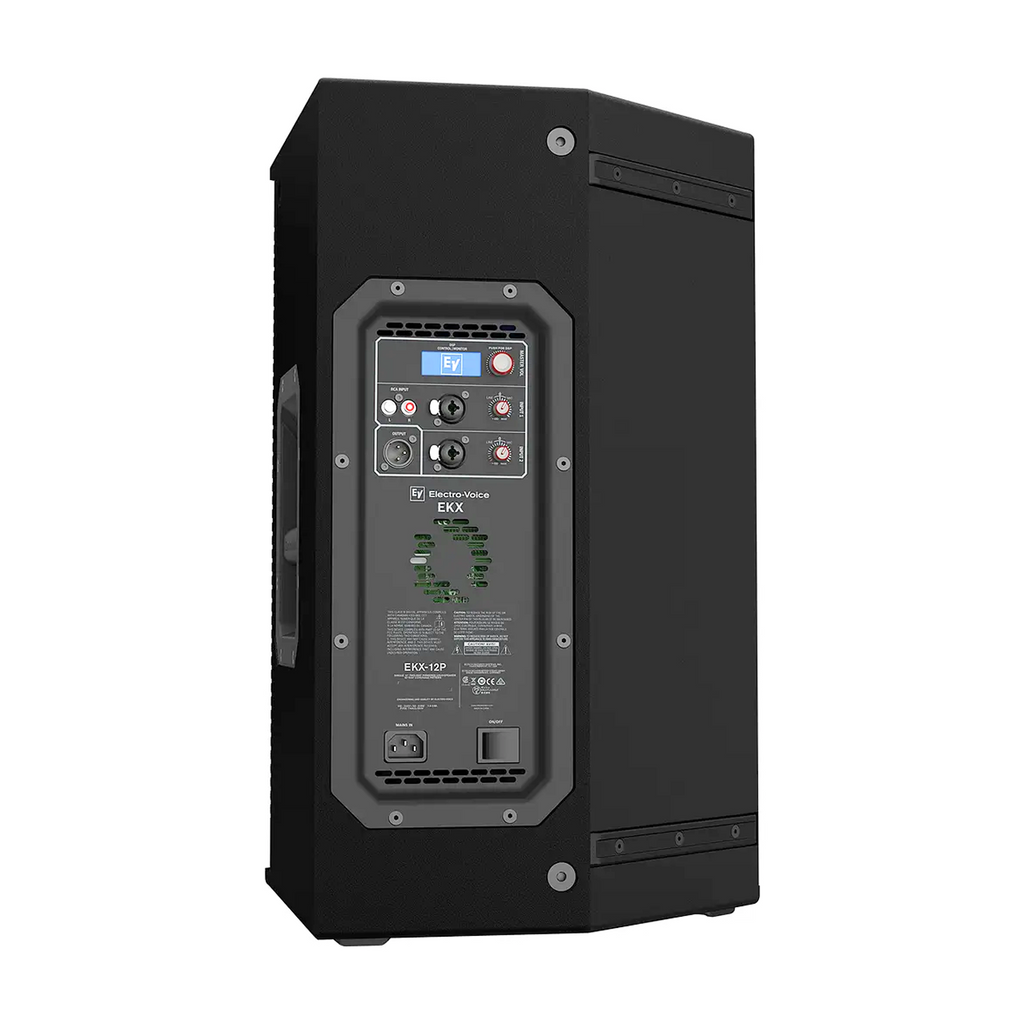

- Connector Type: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output

- Coverage (Nominal -6 dB) H: 90 *

- Coverage (Nominal -6 dB) V: 60 *

- Crossover Frequency: 1.7 k Hz

- Enclosure Material: 15 mm, plywood with EVCoat

- Frequency Response (-10 dB): 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.

- Frequency Response (-3 dB): 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.

- Grill: 18 AWG steel with powder coat

- HF Transducer: DH-1M 1-inch titanium compression driver

- LF Transducer: EVS-12M 300 mm (12 in)

- Maximum SPL: 132 dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

- Power Consumption: 1.8 A Current rating is 1/8 power

- Power Rating: 1500 W

- Shipping Weight: 22.9 kg (50.49 lbs)

- Mounting/Suspension: (8) M10 threaded mounting points

- Height: 14RU 607 mm (23.9
